Spec

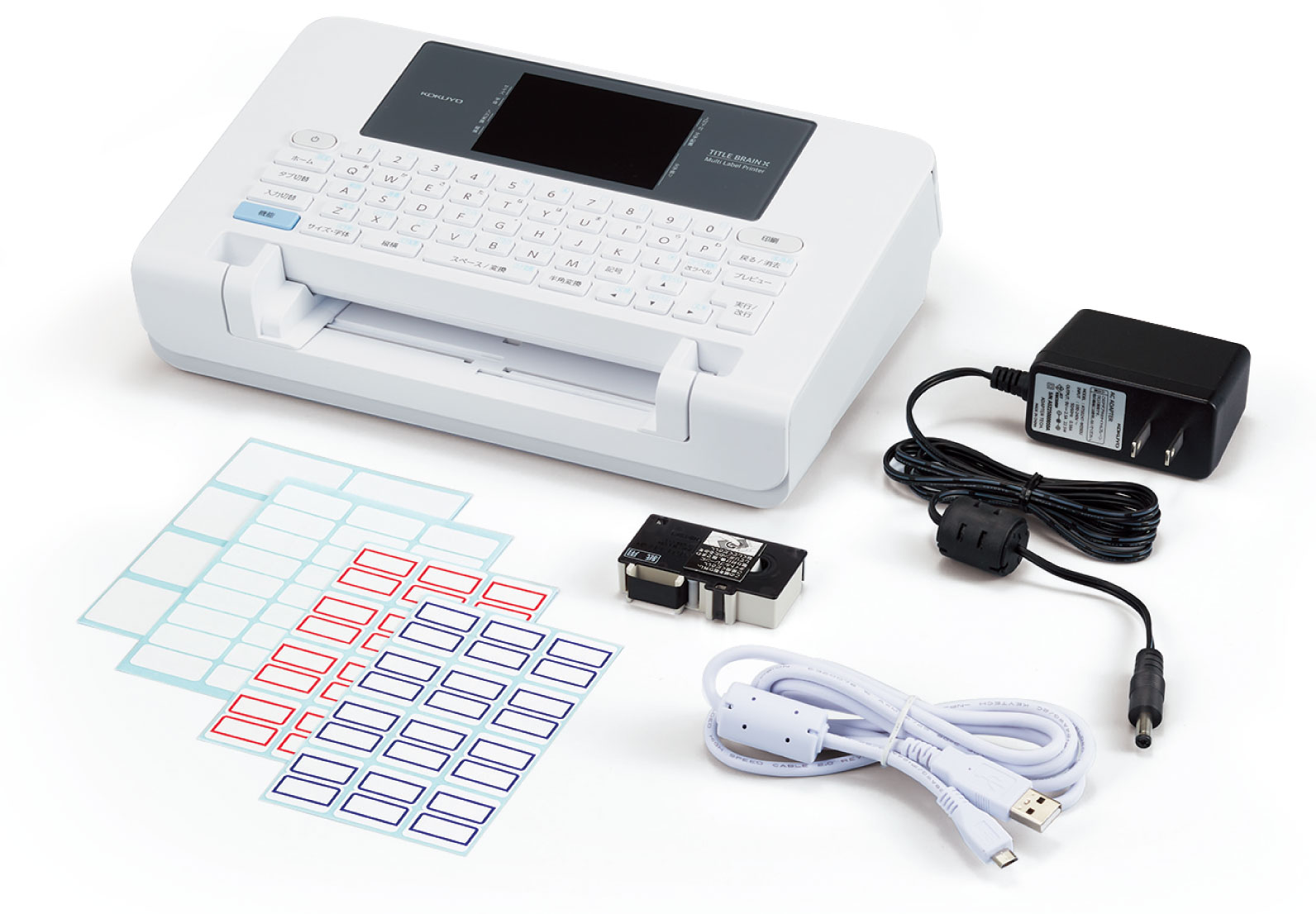

(Set contents)
Ink ribbon cassette (for paper) black 1 piece Dedicated AC adapter, trial sheet,
Startup guide (with warranty) USB cable
| Product number | Manufacturer's suggested retail price (Tax excluded) |
External dimensions (W・D・H) |
mass |
|---|---|---|---|
| NS-TB5 | ¥49,500 | 260・173・76 | 1.34 kg (batteries not included) |
Power supply: Dedicated AC adapter (included) or six AA alkaline batteries (sold separately) Warranty period: 1 year
●Supported OS: Japanese Windows 11/10
*Please use Kokuyo labels. *Data is not linked or compatible with Title Brain 2.
Production of Title Brain 2 (NS-TB2N), Title Brain 3 (NS-TB3N), and Title Brain 4 (NS-TB4) has been discontinued.
Thank you for your continued patronage over the years.

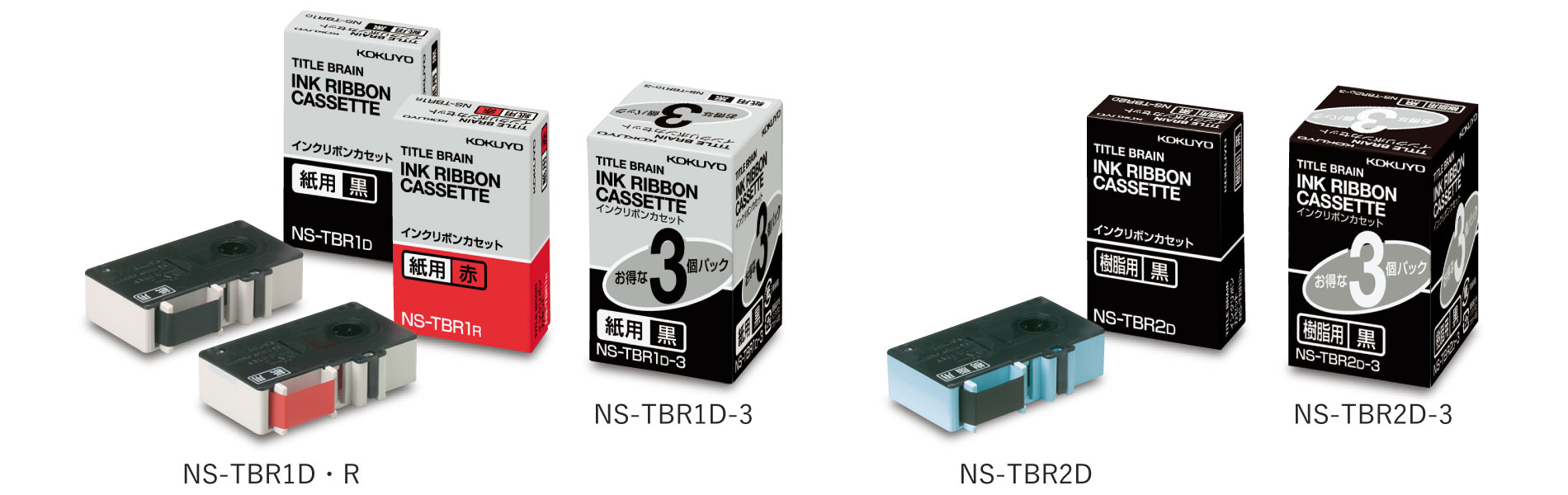

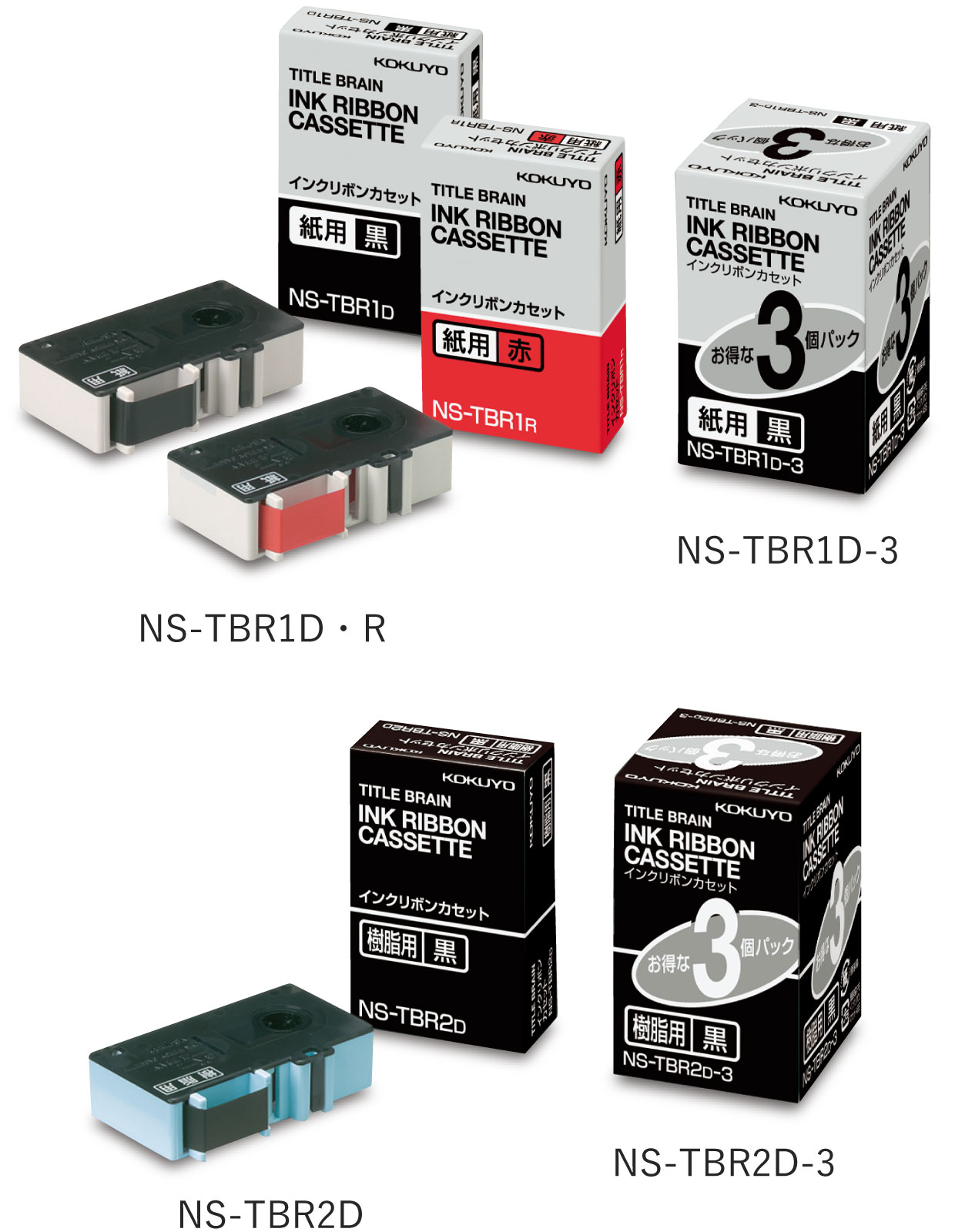

| Product number | Manufacturer's suggested retail price (Tax excluded) |
specification | ink color |
|---|---|---|---|
| NS-TBR1D | ¥2,050 | For paper 9mm, 30m |
black |
| NS-TBR1R | ￥2,050 | red | |
| NS-TBR1D-3 | ￥5,300 | black | |
| NS-TBR2D | ￥2,050 | For resin 9mm, 30m |
black |
| NS-TBR2D-3 | ￥5,300 | black |
●NS-TBR1D-3 and TBR2D-3 come with 3 black ink cartridges
| Input Method | Romaji input/Kana mekuri input/ABC input/abc input Vertical and horizontal input Kana-Kanji Conversion/Katakana Conversion/Half-width Conversion |
|---|---|
| Display section | 3.5 inch Backlit color LCD Displayed characters: 9 characters x 6 lines (when entering) |
| Number of characters to input | Maximum approximately 500 characters (Number of characters that can be entered at one time in one label or revised label) *Depends on the label type and input status. |
| Formatting/Font | UD Shin Go R/Outline Font *The font name "UD Shin Go R" included in this software is provided by Morisawa Inc., and the copyright of the font data belongs to that company. |
| Built-in characters | JIS first level (2,965 characters) JIS second level (3,390 characters) Others (emoji/symbols/special characters) (717 characters) |
| Built-in dictionary | Dictionary with predictive conversion: Approximately 277,000 words Word registration (50 words) |
| Font size | 8 sizes: 3S, SS, S, M, L, LL, 3L, 4L Three types: square, flat, and rectangular (4L is square only) |
| character modification | Italic/Emphasis/Outline/Shadow/Outline Shadow/3D Shading/Borders/Correction Lines/Underlines |
| Editing features | Auto layout/tack index editing/break label/sequential number input Block editing/Superscript, Subscript/Center justification, Bottom justification Free form registration/External character registration (10 characters)/Copy, paste/Restore |
| Printing method | Thermal transfer method, resolution 270 dpi |
| Printing features | Print layout display/Specify print set number/Individual number setting Print start position setting/skip label specification/mirror printing |
| File registration | Number of characters that can be registered: Approximately 60,000 characters Number of saved data files: Maximum 1,000 files *Depends on the label type and input status. |
| External dimensions (mm) | Width: 260, Depth: 173, Height: 76 |
| Mass (kg) | 1.34 (batteries not included) |
| Interface | USB interface (USB 2.0) |
| USB connector shape | micro USB Type-B |
| power supply | Dedicated AC adapter (included)/ Requires six AA alkaline batteries (sold separately) / Auto power off function |
| accessories | Ink ribbon cassette (for paper) black 1 piece, dedicated AC adapter, trial sheet, Startup guide (with warranty) and USB cable |
<Application software operating environment>
●Compatible models: PC/AT compatible machines (DOS/V machines)
●Supported OS: Japanese Windows 11/10 (32bit/64bit)
(PC with one of the above pre-installed)
Required equipment: USB port CPU processing power: 2GHz or higher processor (Intel Core i3 or higher processor recommended)
●Memory capacity: 4GB or more (8GB or more recommended) ●Hard disk space occupied: Approximately 5MB
●Display: Resolution of 1280 x 768 px or higher (1920 x 1080 px or higher recommended)
●Interface: USB connection (USB2.0/1.1 Type-A - USB2.0/1.1 micro USB Type-B)
